marley::GammaExitChannel Class Reference

Abstract base class for ExitChannel objects that represent emission of a gamma-ray. More...

#include <ExitChannel.hh>

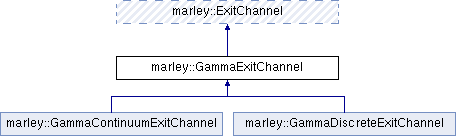

Inheritance diagram for marley::GammaExitChannel:

Public Member Functions
virtual bool	emits_fragment () const final override
	Returns true if this channel involves fragment emission or false if it involves gamma-ray emission.
virtual int	emitted_particle_pdg () const final override
	Returns the PDG code for the particle (gamma-ray or nuclear fragment) emitted by decays into this ExitChannel.
virtual int	final_nucleus_pdg () const final override
	Returns the PDG code for the final nucleus.
Public Member Functions inherited from marley::ExitChannel
	ExitChannel ()=default
	ExitChannel (int pdgi, int qi, double Exi, int twoJi, marley::Parity Pi, double rho_i, marley::StructureDatabase &sdb)
virtual void	do_decay (double &Exf, int &two_Jf, marley::Parity &Pf, const std::shared_ptr< HepMC3::GenParticle > &compound_nucleus, std::shared_ptr< HepMC3::GenParticle > &emitted_particle, std::shared_ptr< HepMC3::GenParticle > &residual_nucleus, int &qIon, marley::Generator &gen) const =0
	Simulates a nuclear decay into this channel.
virtual bool	is_continuum () const =0
	Returns true if this channel accesses the particle-unbound continuum of nuclear levels or false otherwise.
double	width () const
	Get the total decay width into this channel (MeV)

Protected Member Functions
double	gamma_energy (double Exf) const
marley::GammaStrengthFunctionModel::TransitionType	get_transition_type (int mpol, marley::Parity Pf) const
Protected Member Functions inherited from marley::ExitChannel
virtual void	compute_total_width ()=0
virtual void	prepare_products (const std::shared_ptr< HepMC3::GenParticle > &compound_nucleus, std::shared_ptr< HepMC3::GenParticle > &emitted_particle, std::shared_ptr< HepMC3::GenParticle > &residual_nucleus, double Exf, int &qf, marley::Generator &gen) const
	Helper function that prepares Particle objects representing the products of the two-body decay.

Additional Inherited Members
Static Public Member Functions inherited from marley::ExitChannel
template<typename It>
static marley::IteratorToPointerMember< It, double >	make_width_iterator (It it)
	Convert an iterator that points to an ExitChannel object into an iterator to the ExitChannel's width_ member variable.
Protected Attributes inherited from marley::ExitChannel
double	Exi_
	Initial nuclear excitation energy \( E_x \) (MeV)
double	one_over_two_pi_rho_i_
int	pdgi_
	PDG code for the initial nucleus.
marley::Parity	Pi_
	Initial nuclear parity \( \Pi \).
int	qi_
marley::StructureDatabase *	sdb_
	StructureDatabase to use in calculations.
int	twoJi_
	Two times the initial nuclear spin \( J \).
double	width_
	Total decay width into this channel (MeV)

Detailed Description

Abstract base class for ExitChannel objects that represent emission of a gamma-ray.

Definition at line 222 of file ExitChannel.hh.

Constructor & Destructor Documentation

GammaExitChannel()

marley::GammaExitChannel::GammaExitChannel ( )

inline

Definition at line 225 of file ExitChannel.hh.

{}

Member Function Documentation

emits_fragment()

virtual bool marley::GammaExitChannel::emits_fragment ( ) const

inlinefinaloverridevirtual

Returns true if this channel involves fragment emission or false if it involves gamma-ray emission.

Implements marley::ExitChannel.

Definition at line 230 of file ExitChannel.hh.

        { return false; }

emitted_particle_pdg()

virtual int marley::GammaExitChannel::emitted_particle_pdg ( ) const

inlinefinaloverridevirtual

Returns the PDG code for the particle (gamma-ray or nuclear fragment) emitted by decays into this ExitChannel.

Implements marley::ExitChannel.

Definition at line 227 of file ExitChannel.hh.

        { return marley_utils::PHOTON; }

final_nucleus_pdg()

virtual int marley::GammaExitChannel::final_nucleus_pdg ( ) const

inlinefinaloverridevirtual

Returns the PDG code for the final nucleus.

Implements marley::ExitChannel.

Definition at line 233 of file ExitChannel.hh.

        { return pdgi_; }

References marley::ExitChannel::pdgi_.

gamma_energy()

double marley::GammaExitChannel::gamma_energy ( double Exf ) const

protected

Definition at line 149 of file ExitChannel.cc.

                                                              {
  // Approximate the gamma energy by the excitation energy difference between
  // the initial and final nuclear states
  // TODO: consider adding a nuclear recoil correction here
  double E_gamma = Exi_ - Exf;
  return E_gamma;
}

get_transition_type()

TrType marley::GammaExitChannel::get_transition_type ( int mpol, marley::Parity Pf ) const

protected

Definition at line 158 of file ExitChannel.cc.

{
  // Electric transitions satisfy the parity relation Pi = (-1)^{\ell} * Pf,
  // where Pi (Pf) are the initial (final) nuclear parities and \ell is the
  // multipolarity of the transition. Magnetic transitions satisfy
  // Pi = (-1)^{\ell + 1} * Pf. We choose the appropriate transition type
  // here based on these rules.
  bool mpol_is_odd = mpol % 2;
  marley::Parity P_final_state = Pf * marley::Parity( !mpol_is_odd );
  TrType type = ( Pi_ == P_final_state ) ? TrType::electric : TrType::magnetic;
  return type;
}

---

The documentation for this class was generated from the following files:

• /home/sjg/Desktop/marley/include/marley/ExitChannel.hh
• /home/sjg/Desktop/marley/src/ExitChannel.cc
